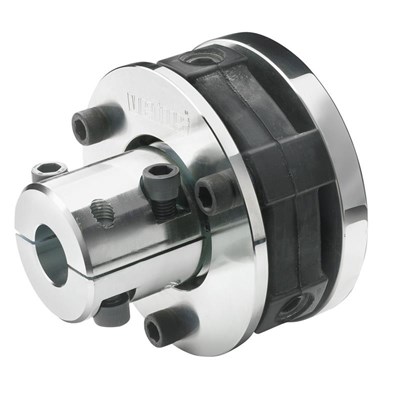

Vetus Flexible Coupling Type Bullflex 1, Shaft Diameter 1 Inch. BULFL011

Vetus Flexible Coupling Type Bullflex 1, Shaft Diameter 1 Inch. BULFL011
Buying information Part Number: BULFL011 From £416.00 inc VAT
Select an option
Add to Basket Enquire

Description

The BULFL011 ensures optimum damping of vibrations. Excellent alignment of the propeller shaft due to a special centering ring, with ease of installation.

Technical Specification

TYPE BULLFLEX
1
DIN 6270B = PLEASURE CRAFT KW (HP)/100 SHAFT RPM
0.8 (1.1)
DIN 6270A = COMMERCIAL CRAFT KW (HP)/100 SHAFT RPM
0.5 (0.7)
MAX. TORQUE NM DIN 6270B
75
MAX. TORQUE NM DIN 6270A
45
MAX. RPM AT ZERO MISALIGNMENT
7000
MAX. RPM AT 2º MISALIGNMENT
3500
D (MM)
100
L (MM)
85
SHAFT DIAMETER D (MM)
No
