Yanmar 3YM30 Marine Diesel Engine 29hp

Data sheets

3YM30 Line drawing with KM2P-1 gearbox 3YM30 Brochure OPERATION MANUAL ENGINE 3YM30AE OPERATION MANUAL SAILDRIVE SD25 TECHNICAL DRAWINGS SAILDRIVE 3YM30AECE - SD25

Description

For best price call 01206 302133

To buy engine spares for this engine

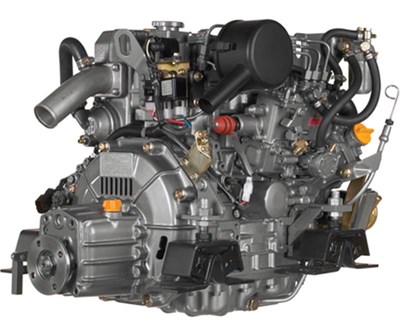

YM Series NEW 3YM30 (29HP/21kW) More displacement, more torque, quieter, cleaner running and featuring an all-new three-cylinder block and combustion system. This is the latest in high output marine diesel technology.

click here

Technical Specification

Power (Crankshaft)

21.3 kW (29 HP) @ 3600rpm

Full throttle operating speed

3200-3600 rpm

Displacement

1.115 litre

Bore x Stroke

76 mm x 82mm

Cylinders

Combustion system

indirect injection

Alternator

60A (80A option)

Cooling system

water cooled

Buying information Part Number: 3YM30AEKM2P1221 From £9,582.16 inc VAT

Options

3YM30 with KM2P-1 2.21:1 Gearbox £9,582.16 inc VAT

3YM30 Saildrive £11,695.68 inc VAT

3YM30 with KM2P-1 2.62:1 Gearbox £9,582.16 inc VAT

3YM30 Bobtail Version £8,770.21 inc VAT

Enquire
