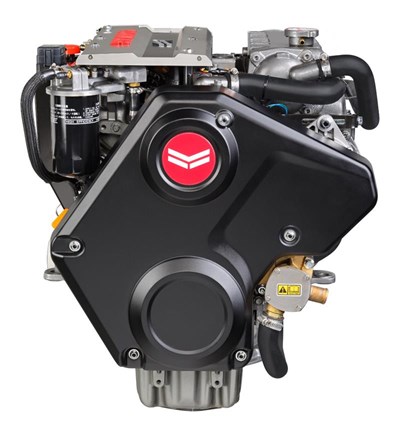

YANMAR 3JH40 Marine Diesel Engine 40hp

YANMAR 3JH40 Marine Diesel Engine 40hp

Description

WINNER OF THE MIAMI 2018 INNOVATION AWARD FOR THE INBOARD ENGINE CATEGORY.

YANMAR introduces the 3JH40 as the world’s smallest common rail inboard marine diesel engine in displacement, dimensions, and weight.

The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.

With an output of 40 MHP @ 3000 rpm (29.4 kW @ 3000 rpm), the 3JH40 is the smallest common rail inboard marine diesel in:

Displacement, with only 3 cylinders measuring 1.642 L (100 cu in

Physical size, measuring 774 x 580 x 632mm

Weight, measuring 192kg without gear



Through common rail technology, the 3JH40 offers minimal fuel consumption and exceptionally low noise and emission levels, exceeding EPA Tier 3 and EU RCD Tier 2 emission regulations for virtually smoke and odor-free operation.

The 4-stroke, water-cooled 3JH40 is an ideal solution for new builds and repowering applications, specifically monohull sailing yachts and catamarans up to 45ft, small motor boats or sloops, and light duty commercial craft.






Technical Specification

RATED OUTPUT
29.4 kW / 40 mhp
RATED SPEED
3000 rpm
DISPLACEMENT
1.642 L [100 cu in]
CYLINDERS
3 in-line
BORE X STROKE
88 mm x 90 mm
TYPE
4-stroke, vertical, water-cooled diesel engine
EMISSION COMPLIANCE
EU: RCD 2, BSO II, EMC. US: EPA Tier 3.
WARRANTY
2 + 3 year extended warranty
Buying information Part Number: 3JH40 From £11,903.20 inc VAT

Options

3JH40 With KM35A 2.33:1 Gearbox £11,903.20 inc VAT
3JH40 With KM35P 2.36:1 Gearbox £11,903.20 inc VAT
3JH40 With Saildrive £14,558.38 inc VAT
3JH40 With KM35A 2.64:1 Gearbox £11,903.20 inc VAT
3JH40 With KM35P 2.61:1 Gearbox £11,903.20 inc VAT
3JH40 Bobtail Version £10,753.12 inc VAT
Enquire
