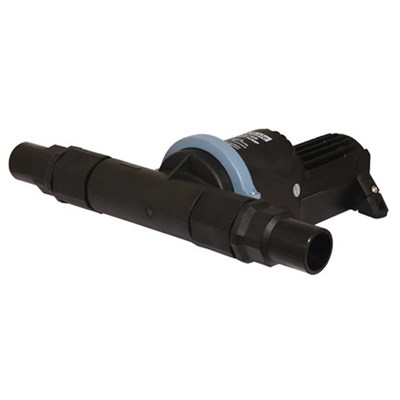

WHALE GULPER TOILET WASTE PUMP
For holding tank electric pump out/discharge.
No clog, no filter waste pump built on more than a
decade of market leading pump technology Pumps
un-macerated toilet waste
Features and Benefits
Pumps un-macerated toilet waste
Runs dry without damage
Up to 18 ltrs (4.75 US gal) per minute
Virtually unblockable
Rotatable inlet and outlet - allows you to install in awkward locations
Self priming up to 3m (9.8 ft) - mount the pump in the most convenient part of boat
Pumps a mixture of air and waste
Easy to maintain
Ideal for holding tanks and vacuum systems
Extra large ports 1.1/2" (38mm) for consistent flow
Easy release clamp ring to rotate pump head
High spec protected motor
Head rotates 360 degrees to best suit your installation
Non choke valves to pump unmacerated waste - no moving parts to clog
Rubbermounting feet absorb vibration
Accreditations:
Ignition protection ISO8846 • CE marked
Specifications:
Model: Gulper Toilet Pump
Weight: 2.12kg (4.75 lbs)
Hose Connections: 38mm (1.1/2")
Minimum Wire Size: 1.5mm² (16 AWG)
Materials: Pump Body: Aluminium, Glass-filled Nylon, Clamp Ring: Acetal Diaphragm: Santoprene, Valves: Nitrile, Gearwheel: Bronze, Feet: EPDM Fasteners: Stainless Steel, Brass
Service Kits: W-AK1557 - service kit
Materials in contact with fluid: Glass-filled Nylon, Santoprene, Nitrile
Maximum Suction Lift: 3m (10 ft)
Maximum Discharge Head: 3m (10 ft)
Lift/Head Combined: 3m (10 ft)
| Part Number |
Voltage |
Recommended Automotive Fuse Size |
Dry Running Current |
| W-BP2552B |
12V DC |
10 Amp |
5 amps |
| W-BP2554B |
24V DC |
5 Amp |
2.5 amps |
| Performance Data: |
W-BP2552B |
W-BP2554B |
| Suction Lift: |
0m (0 ft) |
1m (3ft) |
| Discharge Head: |
1m (3ft) |
1m (3ft) |
| Flow rate per minute |
17.5 ltrs (4.6 US gals) |
16.5 ltrs (4.4 US gals) |
| Current Draw (12V DC) |
6.5 amps |
7.1 amps |
| Current Draw (24V DC) |
3.25 amps |
3.55 amps |
Tip: Ideal for use in conjunction with Whale’s robust and durable Diverter Valve 1/2" ports Part No. W-DV5606
