Vetus Hydraulic Steering Cylinder MTC30 8mm tubing

Product information

High quality brass bodied hydraulic cylinder for smaller yachts and work boats. Supplied with zinc plated rod end (stainless steel upgrade available) and compression fittings with bleed nipples. Nylon fixing bracket.

Wheel Turns (lock to lock with HTP pump models)
HTP20: 3.4

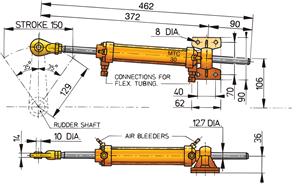

Dimensions
Stroke: 150mm
Volume: 67cm³
Length of tiller arm: 129mm
Rod End Thread: M10
Weight: 1.8Kg

Technical details:
Max. Torque: 294 Nm (30 kgm) (216 ft.lbs)
Pressure 3923 kPa (40kg/cm²) (569lbs/sq.inch).
Connections: G¼ female pipe thread.
Total rudder angle: 70° (2 x 35°).
