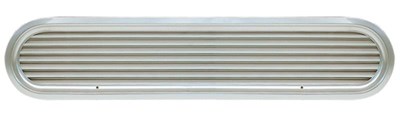

Vetus ASV Air suction vent

Buying information Part Number: ASV020A From £89.00 inc VAT
Select an option Add to Basket Enquire
Product options ASV 20 £89.00 inc VAT ASV 25 £93.00 inc VAT ASV 30 £103.00 inc VAT ASV 40 £114.00 inc VAT ASV 50 £137.00 inc VAT ASV 60 £142.00 inc VAT ASV 70 £147.00 inc VAT ASV 80 £152.00 inc VAT ASV 90 £156.00 inc VAT ASV 100 £166.00 inc VAT ASV 125 £175.00 inc VAT ASV 150 £220.00 inc VAT

Vetus ASV Air suction vent

Product information



Air Requirements

A marine diesel engine needs sufficient air in order to function correctly. The volume of combustion air required is approximately 6.1m3 per kW (4.5 m3per hp) per hour, based on a maximum air velocity of 3 m/sec. In addition to combustion air, the engine also requires sufficient ventilation air to dissipate the radiated heat. The volume of ventilation air required is about the same as the combustion air needed. The design of the Vetus air suction vents is based on these principles. The Model numbers given in the table relate to the engine horsepower for which they are suitable. When designing the engine room layout, it is therefore easy to calculate the size of the air vents required. Do not forget to allow for extra air vents to extract the heat from the engine space as well. For example: a boat with an engine of 60hp will require for the combustion and ventilation air, 2 louvered air suction vents type 60 (1 x starboard + 1 x port) or 4 type 30 vents (2 x starboard + 2 x port).



ASV

The Frame is made of polished anodised aluminium the grilles of naturally anodised aluminium.

Air Suction Vent ASV 20 25 30 40 50 60 70 80 90 100 125 150

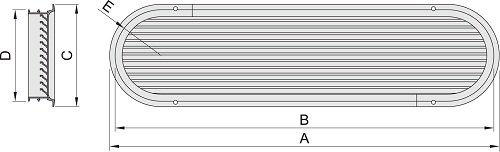

Dimensions in mm
A 300 350 360 450 490 570 590 660 670 730 750 890
B = Cutout 280 330 340 430 470 550 570 640 650 710 730 870
C 117 117 130 130 146 146 159 159 172 172 198 198
D = Cutout 97 97 110 110 126 126 139 139 152 152 178 178
E = Cutout radius R 48.5 R 48.5 R 55 R 55 R 63 R 63 R 69.5 R 65.5 R 76 R 76 R 89 R 89
Free flow area in dm2 0.83 1.00 1.22 1.59 2.02 2.41 2.83 3.21 3.63 4.00 5.03 6.00

 All standard air suction vent can be supplied with a synthetic dorade box (DBOX) as an option
