Porthole type PZ71 cut-out size 279 x 142 mm

Buying information Part Number: PZ71 From £107.00 inc VAT
Select an option Add to Basket Enquire
Product options PZ71, Porthole type PZ71, cut-out size 279 x 142mm £107.00 inc VAT PZ72, Porthole type PZ72, cut-out size 329 x 152mm £117.00 inc VAT PZ73, Porthole type PZ73, cut-out size 343 x 160mm £126.00 inc VAT PZ74, Porthole type PZ74, cut-out size 343 x 176mm £131.00 inc VAT PZ75, Porthole type PZ75, cut-out size 377 x 168mm £140.00 inc VAT PZ76, Porthole type PZ76, cut-out size 377 x 212mm £142.00 inc VAT

Porthole type PZ71 cut-out size 279 x 142 mm

Product information

Portholes type PZ are supplied with hand polished and anodized aluminium frames and “smoke” coloured acrylic of 10 mm thickness.

These VETUS portholes are not screwed, but clamped. Consequently, there is no need to drill holes.

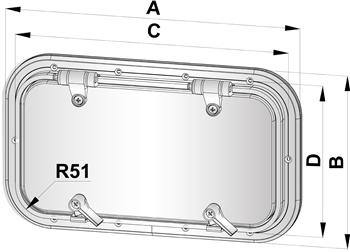

   External dimensions in mm     PZ71     PZ72    PZ73     PZ74     PZ75     PZ76     PZ77
                  A X B  301 X 164  351 X 174  365 X 182  365 X 198  399 X 190  399 X 234  451 X 274
    Cut-out dimensions in mm






                  C X D  279 X 142  329 X 152  343 X 160  343 X 176  377 X 168  377 X 168  429 X 252
