Perkins M92B Marine diesel engine 86 hp

M92B Price on application
Perkins M92B Marine diesel engine 86 hp

Data sheets

M92B Line drawing - 190 KB

Product information

Perkins offer a very flexible engine specification which means we are unable to show the price of the engine on the website. Please call 01206 302133 for best price or click the enquire button

The Perkins Sabre M92B engine is the successor to the very successful M92. It has been inspired by and led by the future requirements of our customers to meet the needs of the marine industry.


Built to the most demanding standards, the M92B engine meets all the requirements of both EC Stage 2 and USA EPA Tier 2 off-highway emissions legislation from 2004 and brings significant improvements over the M92 highly successful predecessor.

The M92B is a quiet 4.4 litre unit delivering improved performance and reduced operating costs in an efficient package ideal for a range of marine applications.


Class leading performance



The M92B provides an increase in torque capability over its highly successful predecessor. Improvements have also been made to the torque curve of the engine to give up to 12% more low speed torque with torque back up, increasing to 26%.
Cleaner and quieter
The M92B operates with smoke levels barely visible to the naked eye. Improvements of up to 3dBA have also been made to bare engine noise over its predecessor. Concentrating on reduced noise levels throughout the complete operating range of the engine from idle through to full load rated speed. This has been achieved through numerous individual product developements, including a new cylinder block design and developements to the front end ge
ar train.

Quality by design

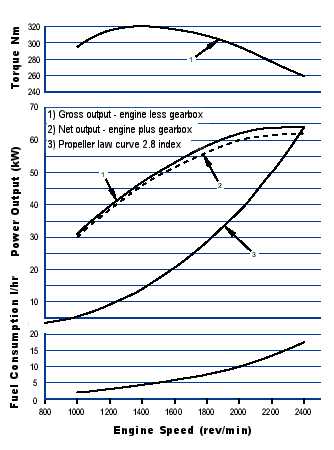

Perkins M92B Performance graphs

Product design and manufacturing process improvements have been implemented from the concept to enhance both engine reliability and durability. Perkins Sabre have also taken the opportunity to improve the 'design for assembly' through simplified sub-assemblies and improved joint and sealing technologies.

Ease of installation

The changeover for existing M90/M92 to EC Stage 2 and USA EPA Tier 2 product is made easy through the carryover of existing envelope size and mounting points therefore minimising installation issues in repowering projects.
Lower operating costs
Service intervals are now set at 500 hours as standard and the warranty period has been extended to 2 years with 3 years on majors. In addition, fuel economy has improved by as much as 6%.

Product support

Total worldwide service continues to be provided through a network of 4000 distributors and dealers. This is enhanced by the introduction of TIPSS (The Integrated Parts and Service System) which represents a step change in diesel engine support. TIPSS enables customers to electronically specify and order parts as well as service electronic and mechanical engine with online guides and service tools.


Standard Equipment

  • Base engine.
  • Fresh water heat exchanger cooled engine with gear driven self priming raw water and fresh water pumps or keel cooling adaption.
  • Fresh water cooled exhaust manifold, intake manifold and heat exchanger.
  • Air intake filter.
  • High inclination engine sump with sump drain pump.
  • Inverted spin-on element lub oil filter.
  • Transmission oil cooler.
  • Totally enclosed engine breather.
  • High mounted single element fuel filter.
  • Manual control adaption parts.
  • Alarm switches and warning siren.

Optional Equipment

  • Backends - suitable for a range of transmissions.
  • Marine Transmissions (Standard)
  • ZF 45A
  • Newage PRM500D/PRM260D
  • Borg Warner 10-18
  • Electrical
  • 12 volt insulated or negative earth
  • 24 volt insulated
  • Exhaust Outlets
  • Water injected outlet
  • Dry exhaust flange
  • Instrumentation
  • Single and dual station instrumation including audible and visual alarms with gauges, senders, switches, loom and varying lengths of interconnecting cables. Simple tachometer panels are also available.
  • Power Take Off
  • Crankshaft PTO extension shaft with pulley drives.
  • Mountings
  • Solid mounting brackets - flexible engine mountings with alignment shims, optional brackets and flexible mountings.
  • Miscellaneous
  • Belt cover.
  • Solid or flexible output couplings.
  • Engine mounted electro-magnetic bilge pumps.
  • Fuel pre-filter with water alarm.
  • Flexible fuel feed and return pipes.
  • Calorifier connections.
  • Tool kit.
  • On-board parts kit.

Technical Specification

SpecValue
Engine configuration4 cylinder, in-line vertical, 4 stroke, water cooled
AspirationNaturally aspirated
Bore / Stroke105 mm (4.13 in) x 127 mm (5.00 in)
Displacement4.4 litre (269 cu.in.)
Combustion systemDirect injection
Compression ratio18.23:1
Engine RotationAnti-clockwise viewed from rear
Fuel Injection EquipmentDelphi rotary with electric stop.
Continuous Engine 20 ° front up
Operating Angles25 ° sideways (35° sideways intermittent)
Power Take OffAvailable from front end drive (for drive limitations refer to Sabre Engines Ltd).
Weight (Wet)423 kg (933 lb) engine only
